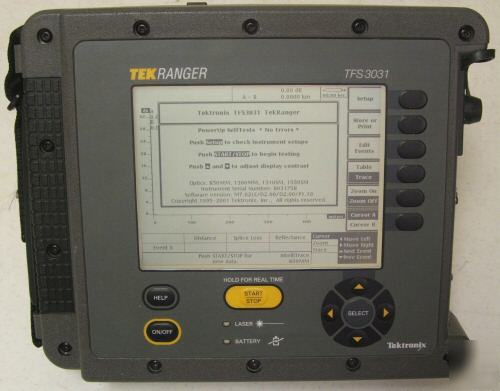

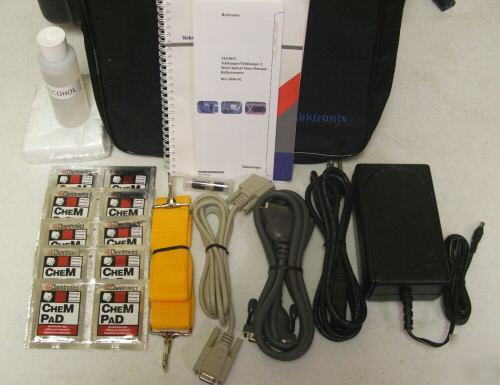

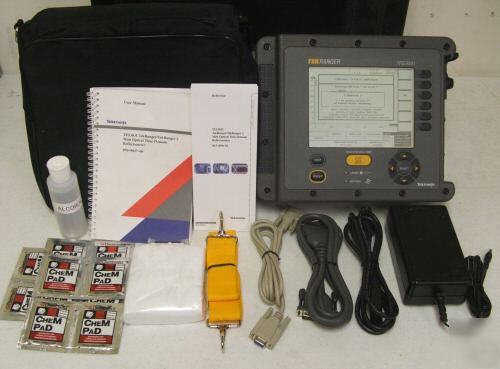

Single Mode 1310nm 1550nm & Multimode 850nm 1300nm Mini OTDR This Unit Is Currently In Transit From Calibration Tektronix Introduces TekRanger Mini-OTDR With IntelliTrace Technology for Greatest Accuracy, Ease of Use. *Battery Pack was just rebuilt and Holds a full charge, this unit is ready to go Work. Included Accessories Listed at the Bottom. Be sure to add us to your Favorites list!. Warranty: 30 Day Exchange Warranty Mini Optical Time Domain Reflectometer TekRangerTM TFS3031 mini-OTDR (optical time domain reflectometer). The product features IntelliTraceTM, a new patented technology for unprecedented accuracy and ease of use in testing fiber optic networks. TekRanger, which replaces the popular FiberMiniTM, adds an optional disk drive and is the first mini-OTDR with both singlemode and multimode test capability in one instrument. "The accelerating deployment of broadband networks is driving a need for rugged test tools that are smaller, faster, and more intelligent," said Ken Ditto, TekRanger product manager at Tektronix. "TekRanger answers this need in data, cable TV and telephony applications." IntelliTrace Includes Enhanced Acquisition and Display IntelliTrace provides complete and accurate results by adjusting acquisition parameters, such as pulse width and number of averages, as it automatically analyzes a fiber link. As a result, it more accurately measures small and closely spaced events, even over long distances. Near-in events are also captured because of TekRanger's superior dead zone performance, allowing one-button testing from five meters to more than 100 km. IntelliTrace features enhanced display of acquired data, with events such as splices and excessive bends in the cable automatically marked and viewable in table format simultaneously with the waveform. Operators can customize the event table, add comments, and eliminate or add events. TekRanger also features a range of user language options, including English, Chinese, Japanese, French, Portuguese, Spanish and German. Dual Wavelength Singlemode and Multimode Options TekRanger is the first mini-OTDR to offer the capability to test both singlemode and multimode fiber with the same instrument. The unique two port design, which allows users to test multimode and singlemode fiber without having to change modules, makes the TekRanger very durable. TekRanger has up to four test wavelengths in one instrument: 1310 and 1550 nm for singlemode fiber, and 850 and 1300 nm for multimode fiber. Designed for Optimal Performance in the Field Like its predecessor, the TekRanger mini-OTDR is rugged, splash-proof and shock-resistant. It weighs only nine pounds (4.2 kg) and measures 11.25 in. x 9.5 in. x 4 in. (29.2 cm x 24.1 cm x 11.4 cm). TekRanger operates using an internal, eight-hour NiCAD battery or standard "C"-size alkaline batteries. An enhanced power management system includes a battery level indicator, low-battery warning and the ability to be recharged from a vehicle. * One-button Fully Automatic IntelliTrace Fiber Analysis * Singlemode Distance and Loss Measurements Traceable to NIST * Large, Backlit, High-resolution Display * Keyboard Port and Optional Mini-keyboard * RS-232 and Parallel Ports for Printing and PC Access * Shock, Water and Dust Resistant * Selectable Splice Loss and Reflectance Thresholds * Files are Compatible with FiberMaster™ OTDR, TARGET1™, PC Spreadsheets * Installation and Acceptance Testing of Fiber Optic Networks * Fiber Optic System Maintenance Testing * Locating Optical Cable Faults During Restoration * Optical System Documentation Distance Measurements - Meters, feet, miles. OTDR Distance Range Settings - Singlemode: 1 to 240 km. Distance Resolution (IntelliTrace™) - 1.25 m to 40 m. Horizontal Time Base: ±1.25 m ±1.25 m ± 10-5 x distance. Vertical Linearity: 0.02 dB/dB. System Measurement Accuracy*4 - Reflectance Accuracy - Exceeds Bellcore GR-196-CORE*2. Measurement Time (Auto) - Less than 3 minutes (20 dB loss). Display - High resolution 640 x 480; 7.2 in., high contrast; operator switchable backlight. Selectable Pulse Widths - 1 m, 5 m, 10 m, 20 m, 50 m, 100 m, 200 m, 500 m, 1000 m, 2000 m. 100 traces in internal memory (typical). 3.5 in. floppy disk drive (optional). Output Ports - RS-232 serial; Centronics parallel printer, mini-DIN (keyboard). Power Options - AC (100 to 240 V, 50 to 60 Hz). DC Operation: 9 to 16 VDC. Internal NiCad rechargeable battery (4 hours of operation depending on operating mode). Class 1 per CEI/IEC 825-1: 1993. Options 3T, 4T and 7T are Class 1. Environmental (without internal disk drive) Nonoperating: -20 °C to +60 °C. Storage Temperature - -20 °C to +60 °C. Relative Humidity - 5% to 95% (noncondensing). Field Usage*2 - Shock, water and dust resistant. Safety - UL 3111-1, CSA 1010.1. *1 Typical performance @ 25 °C. *3 Excludes uncertainty in fiber IR and cabling factor. *4 Verified on NIST traceable calibration system, singlemode options only. * Options: Single-mode 1310nm 1550nm / Multimode 850nm 1300nm * (2) ST to SC SM Fiber Patch Cable * (2) ST to SC MM Fiber Patch Cable (please look at our rules and privacy policy) |
