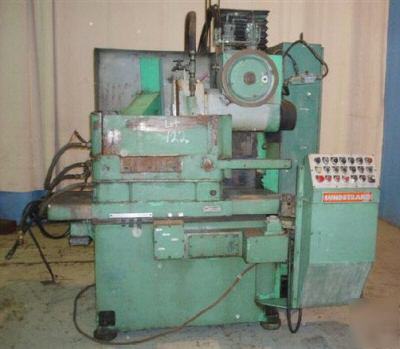

17" SUNDSTRAND HORIZONTAL-SPINDLE ROTARY SURFACE New 1966, Serial No 8252, Model E16, Horizontal-Spindle Machine Design 17" Diameter Heavy Duty Table/Magnetic Chuck Automatic Wheelhead Downfeed - Automatic Sparkout Magnetic Chuck, Diameter............... 17" Swing With-in Coolant Guards........... 22" Power Downfeed......................... .005 to .200 IPM Grinding Height Capacity............... 10" Grinding Wheel Diameter, Maximum....... 16" Grinding Wheel Width, Maximum.......... 2" Grinding Wheel Hole Diameter........... 8" Wheel Speed,........................... 1380 RPM Table Travel, Maximum.................. 15" Convex Table Angle Degrees, Maximum.... 2-DEGREES Concave Table Angle Degrees, Maximum... 2-DEGREES Table Speeds, Variable Range........... 0 to 250 RPM Table Traverse Speed,.................. 0 to 120 IPM Table Rapid Travers Speed.............. 225 IPM Spindle Motor, Horsepower.............. 7-1/2 HP Hydraulic Motor, Horsepower............ 5 HP Floor Space Required, W x D............ 6' x 6' Weight, Approximately.................. 8300 LBS PRICE: F.O.B. OUR WAREHOUSE........... $9,950.00 All machines/equipment subject to prior sale. (please look at our rules and privacy policy) |
