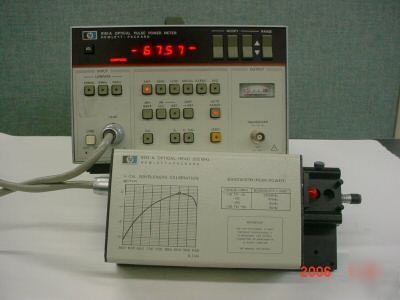

Agilent / HP 8151A Optical Power Meter with HP 81511A Optical Head 250MHz * Peak and average power measurements * Enables the user to accurately determine upper and lower peak power levels * Instrument's transducer has a frequency range of 250MHz, and outputs an electrical signal which corresponds directly to the optical input waveform * Parameters Measured: high, low, and mesial power levels, amplitude, extinction ratio, average power * Measurement Range: 0dBm to -50 dBm * Resolution: 3 digits (Watts), 1pW min.; 4 digits (dB), 0.01dB min. * Power: 100 / 120 / 220 / 240 Vrms * Requires optical adapter to connect to cable or DUT * Our hours of operation are M-F, 10-5PM Pacific Standard Time. Phone: (***) 257-2445 Fax: (***) 257-6310 (please look at our rules and privacy policy) |
