Brooks automation techware-ii plus controller T2PCE-S2


Submitter: Naomisharp@modularparts.com (Naomi Sharp)
What Naomi Sharp is selling: Brooks automation techware-ii plus controller T2PCE-S2

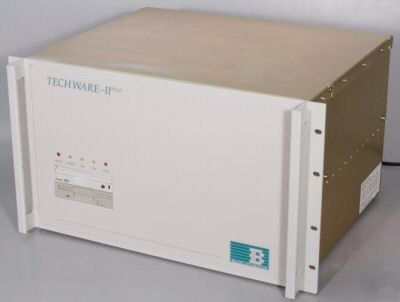

Brooks Automation Techware-II Plus Controller
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
The unit powers up but we do not have the expertise to test it. It was removed from service in working condition. IT is guaranteed NON-DOA.
The Main Unit's Serial Number Tag Reads:
Power Requirements: 120/240 VAC, 50/60 Hz, 0.5 A
Information from the MVME-162-533A Card Installed:
* Front of the Card: 910-167 Rev CA, BRD-FRNT-MVME162-C, Rev C
* Middle of the Card: 01-W3960B 70C, SN: 2861627 - 84-W8960B01E, Rev B
* Rear of the Card: 910-166 Rev DB, BRD-REAR-MVME162-D, Rev C
* Installed Module #1: Motorola Octal Serial Interface, MVIP 302, 01-W2542D01A, SN: 65148166, Option-01, SN: 65148166, Rev B 95021
* Installed Module #2: Memory Board: 01-3992B 01C, SN: 84-W8992B01B, Rev C
* Installed Module #3: Module: 84-W8865B01B, Rev B, SN: 2861053 / 9728, 01-W865B 01B
* Boot Rom: 162Boot Rom Revision 2.4 96/12/12
A/O 0: BRD-PAL-AO16D-G, Rev: G, O16D-0408
A/O 1: BRD-PAL-AO16D-G, Rev: G, O16D-0407
A/O 2: BRD-PAL-AO16D-H, REv: H, O16D-0496HC (B is there, c written on)
A/I 0: 2 Boards, BRD-PAL-AI16D-G, Rev-G, I32D-0504, PA-A/I32-2D Rev C
A/I 1: BRD-PAL-AI16D-J, REv-J, I16D0594JL
A/I 2 and TC 2: BRD-PAL-AI16D-J, Rev J, I16D-0596JL, BRD-PAL-TC16S-C, Rev C, TC16S-0259-E
DIG 0: BRD-PAL-DIG32D-F, Rev F, D32D-1035-FB
RLY 0: BRD-PAL-RLYHVS0A, Rev A, RH16S-0370AA
RLY 1: BRD-PAL-RLYHVS0A, Rev A, RH16S-0393AA
RLY 2: BRD-PAL-RLYHVS-A, Rev A, RH16S-0265AA
RLY 3: BRD-PAL-RLYHVS-A, Rev A, RH16S-0385AA
RLY 4: BRD-PAL-RLYHVS-A, Rev A, RH16S-0419AA
For More Pictures Please Click the Following:
* Picture 5 - Installed Modules
* Picture 7 - Additional Connections
* Picture 8 - Serial Number Tag
