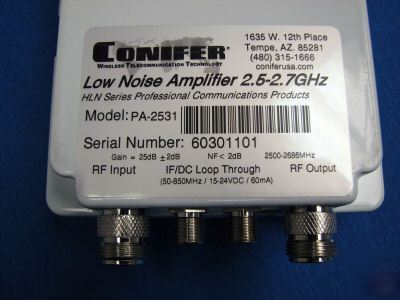

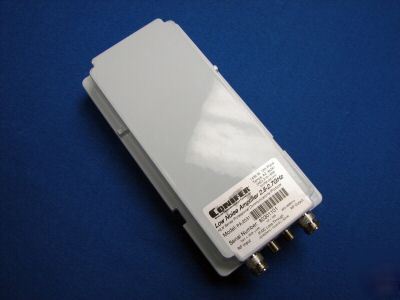

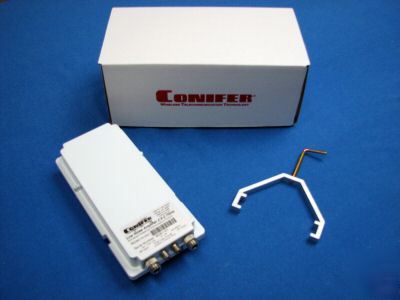

CONIFER MMDS ITFS LOW NOISE PRE-AMP Noise Figure 1.5 dB Typical, 2.0 dB Max RF Output Level +1 dBm (single carrier) -25 dBm (per Channel w/31 Channels) RF Input Level -77 dBm (per Chan. w/31 Chan @45db C/N) -24 dBm (w/ Single Channel @-55dBc IMD) -40 dBm (per Chan. w/31 Chan.) Two Tone Intermod -50 dBc (w/2 Tones @-25dBm) Input Connector 50 Ohm, Type ‘N’ Female Output Connector 50 Ohm, Type ‘N’ Male DC Supply Voltage +12 to 28 VDC Power Supply Connector Type ‘F’ Male w/’F’ Male Thru Power Conn. Leak Testing Per CWT DT-2005.1 Finish White Polyester Powder Coat Paint Size H: 10.0†W: 4.75†D: 2.0†*Specifications subject to change without notice. (please look at our rules and privacy policy) |
