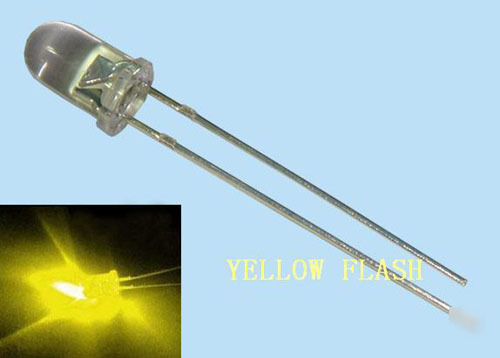

* Emitted Colour : Yellow Flash * Lens Colour : Water Clear * Peak Wave Length (nm) : N/A * Forward Voltage (V) : 3.2 ~ 3.8 * Reverse Current (uA) : <=30 * Luminous Intensity Typ Iv (mcd) : Average in 5000 * Life Rating : 100,000 Hours * Viewing Angle : 20 ~ 25 Degree * Absolute Maximum Ratings (Ta=25C) * Max Power Dissipation : 80mw * Max Continuous Forward Current : 30mA * Max Peak Forward Current : 75mA * Reverse Voltage : 5~6V * Lead Soldering Temperature : 240C (<5Sec) * Operating Temperature Range : -25C ~ +85C * Preservative Temperature Range : -30C ~ +100C Luminous Intensity Typ Iv (mcd) Luminous Intensity Typ Iv (mcd) Luminous Intensity Typ Iv (mcd) Luminous Intensity Typ Iv (mcd) (please look at our rules and privacy policy) |
