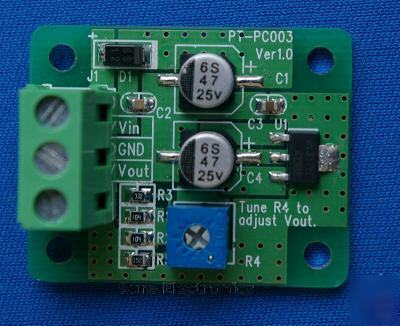

LM317 Adjustable Voltage Regulator Prototype Module Suitable to use with Panel Meter LM317 Adjustable Voltage Regulator Prototype Module Internal Thermal Overload Protection. Internal Short Circuit Current Limiting. Output Transistor Safe Operating Area Compensation. The output voltage is 5V DC presetted. Up To 0.5A Output Current, Imax =1.5 / (Vin - Vout), for example, input 10V, output 7V, the maximum output current is 1.5/ (10-7) =0.5A. When Power Dissipation is 1.5watt, the board temperature is 40 centigrade more than environment temperature. Output Ripple and Noise： Maximum RMS 3mV, Maximum 8mV P-P, @5V, 0.2A output. Suggested Input Voltage： +5~+24V DC. Output Adjustable Between： +2.5V ~+12V. Operating Environment Temperature Range： 0 ~+55℃. Storage Environment Temperature Range：-25~+85℃. * GND should be connected to GND or the housing of your instrument. * When linking load, LM317 is able to regulate output voltage. * Load should be more than 5mA, or the output voltage will be unstable. * input voltage must be 3V or even higher than output voltage. * If the load is too heavy, the output voltage may be less than expected voltage. Suggested connection is shown in Figure 1. Figure 1 (View from potentiometer installation side) (please look at our rules and privacy policy) |
