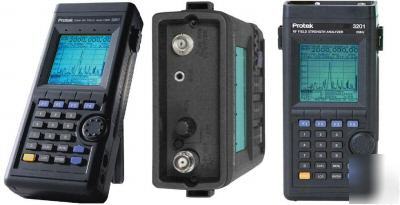

We got this for a project and wasn't used. NEW ***** 3201 - Hand-Held 2GHz RF Signal Analyzer ****NEW Hand-Held and battery operated 100KHz to 2060MHz measurement range Built-in 2GHz frequency counter High sensitivity (-117 dBm max) Detects Wide band and Narrow band FM, AM and Single Sideband Signals Phase lock loop for precise frequency tuning RS-232 interface (includes software and cable) Up to 160 channels may be scanned and displayed Audio output with built-in speaker All functions are menu selected Hard copy printer output of spectrum and bar graph displays 5KHz to 9995KHz in multiples of 5KHz or 6.25KHz Narrow Band FM, Wide Band FM, AM and Single side band 0dB to 60dB with external Attenuator -117dBm to -67dBm (1MHz to 2060MHz) -108dBm to -58dBm (10MHz to 2060MHz) 0 to 6dBµV EMF with supplied antenna Spectrum, Bar graph, Frequency counter Multi channel (2, 5, 10, 20, 40, 80, 160 bar graphs per display), Single Channel and 2 Channel difference (internally generated) -35dBc for W-FM -45dBc for N-FM (typical below full scale signal level) Manual, Channel (memory scan) and Search scan Stores 10 displays of up to 160 CH per display LED. Back light will shut off 5 seconds after the last key depression Std RS-232 interface with female 8 pin mini Din connector. Baud Rates of 1200, 2400, 4800 or 9600 BPS are menu selected. The software supplied is a Windows®-based program, which runs under Windows 95/98/ME/XP/2000. 5, 10, 20 or 30 minutes after the last key depression (user selected) (6) AA NiCd or Alkaline Batteries, 12 volt car adapter or 11V to 16V 500 mA Max AC to DC adapter 9.5" (H) x 4.0" (W) x 1.8" (D) Manual, (6) 1.5V AA NiCd Batteries, Detachable 9" whip antenna, RS-232 Cable and Software, Carrying case, Earphone, Carrying strap, Vehicle power adapter, AC/DC adapter (please look at our rules and privacy policy) |
