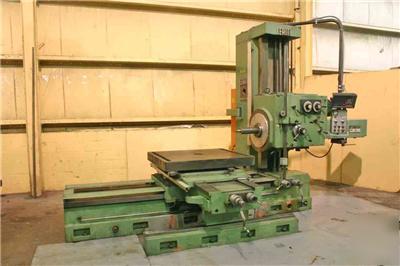

4" CERUIT HORIZONTAL TABLE TYPE BORING MILL SERIAL .............................. 11902 MODEL ............................... AC100 BUILT IN ROTARY TABLE ............... POWER FEED DIAMETER OF SPINDLE ................. 4" AREA OF TABLE ....................... 51" X 43" SPINDLE SPEEDS ...................... (18) 12 TO 1200 RPM SPINDLE FEEDS ....................... (16) .001 TO .192 IPR TABLE, SADDLE, VERTICAL HEAD FEEDS .. (16) 1/4 TO 48 IPM TABLE CROSS TRAVEL .................. 72" VERTICAL SPINDLE TRAVEL ............. 60" SADDLE LONGITUDINAL TRAVEL .......... 60" SPINDLE TRAVEL ...................... 31-1/2" OUTBOARD SADDLE SUPPORTS ............ YES RAPID TRAVERSE ...................... YES PENDANT CONTROL ..................... YES 2 AXIS DIGITAL READOUTS ............. YES SPINDLE MOTOR ....................... 15 HORSEPOWER (please look at our rules and privacy policy) |
