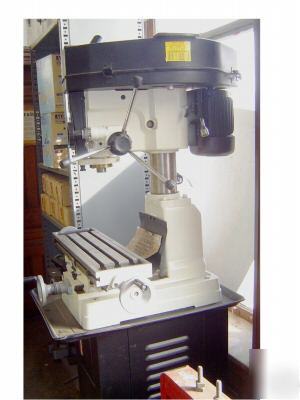

ACCURA 2 HP MILLING/DRILLING MACHINE 2HP Milling/Drilling Machine w/Clamp Kit and Tooling HIGH QUALITY CAST IRON CONSTRUCTION FOR MAXIMUM RIGIDITY, PRECISION, AND VIBRATION DAMPENING Horizontal table travel 19 3/4" These machines are versatile for milling, drilling, boring, reaming, and routing. Head swivels 360 degrees around column. Spindle is supported by heavy tapered roller bearings for long life and precise under radical load. Capacity 1 1/4" drilling, 3/4" tapping,3/4" endmill, 3" facemill, 15 7/8" swing. 12 Speeds 120-2500 RPM easily changed after lifting hinged belt hood. 2HP 110/220 motor is equipped with drum switch for reversing during tapping operations etc. Standard R8 spindle taper assures easily available, low cost tooling. Spindle downfeed offers rapid drill press type feed, or by engaging clutch-type knob micrometer style down feed with fine feed dial graduated .001 5" handle stroke can be controlled with easy view adjustable stop built in scale. Precision 8 1/4" x 28 3/4" table travels 19 3/4" longitudinally and travels 7" with adjustable gibs and locks. Table travels by sturdy handwheels with large chrome zero resettable micrometer dials graduated .001" Machine head travels up & down with rack gear assembly on the large cast and ground 4 1/2" diameter column. Table has adjustable stops on longitudinal axis. 3"quill diameter for rigidity. 18" maximum distance spindle to table. Heavy Cast Iron Base measures 15 3/4x 23 3/4" A MONSTER BARGAIN FOR SHORT MONEY! WE ARE THE HEADQUARTERS FOR ACCURA MACHINE TOOLS You can view most items during our normal business hours at World Headquarters in Historic Beaver Falls, PA. We have been in business for and are well known and respected in the industry. very nice and easy to install. very good to deal with. thank you very much the parts worked out just great-highly recommend this seller EXCELLENT ITEM....WORKS PERFECT....THANKS GREAT DEAL. ALREADY USED IT& MADE MONEY. AAAAA All PA residents must pay 6% sales tax. If you have an exemption please email us for instructions on filing. THANKS FROM ALL OF US AT THE WORLD’S FIRST TOOL SUPERMARKET (please look at our rules and privacy policy) |
