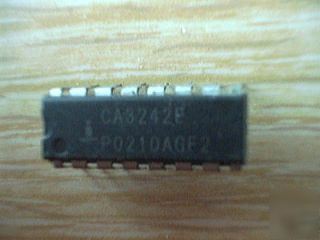

Quad-Gated Inverting Power Driver For Interfacing Low-Level Logic to High Current Load • Driven Outputs Capable of Switching 600mA Load Currents Without Spurious Changes in Output State • Inputs Compatible with TTL or 5V CMOS Logic • Suitable for Resistive or Inductive Loads • Power-Frame Construction for Good Heat Dissipation The CA3242 quad-gated inverting power driver contains four gate switches for interfacing low-level logic to inductive and resistive loads such as: relays, solenoids, AC and DC motors, heaters, incandescent displays, and vacuum fluorescent Output overload protection is provided when the load current (approximately 1.2A) causes the output VCE(sat) to rise above 1.3V. A built-in time delay, nominally 25μs, is provided during output turn-on as output drops from VDD to VSAT. That output will be shut down by its protection network without affecting the other outputs. The corresponding Input or Enable must be toggled to reset the output protection circuit. Steering diodes in the outputs in conjunction with external zener diodes protect the IC against voltage transients due to To allow for maximum heat transfer from the chip, the four center leads are directly connected to the die mounting pad. In free air, junction-to-air thermal resistance (RθJA) is 60oC/W (typical). This coefficient can be lowered by suitable design of the PC board to which the CA3242 is soldered. Data Sheet: /Electronic%20and%20other%20parts/CA3242E/CA3242E%20DataSheet.pdf (please look at our rules and privacy policy) |
