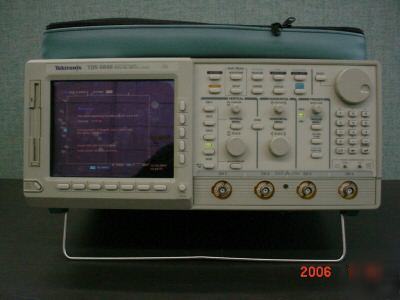

TDS684B 4 Channel 1GHz 5GS/s Digtial Oscilloscope with option 1F, 2F and 13 TDS 600 Series provides design engineers excellent single shot accuracy for multi-channel, high speed signal characterization. The Digital Real-Time architecture of the TDS 600 Series simplifies capturing intermittent signals or non-recurring problems like glitches or metastable states caused by setup and hold time violations. * Sample Rate (all channels simultaneously): 5 GS/s * Real-time Bandwidth: 1 GHz * Maximum Record Length per Channel: 15,000 pts * Vertical Resolution 8-Bits; >11-Bits with averaging * Time Measurement Accuracy : <50 ps @ 5 GS/s * Option 1F:3.5 inch 1.44 MB Floppy Drive * Option 2F:Extended Waveform Math: FFT, Integration, and Differentiation * Option 13:RS-232C and Centronics Hardcopy Interfaces This item also includes a CD copy of Manual and Power Cord, no probe * Our hours of operation are M-F, 10-5PM Pacific Standard Time. Phone: (***) 257-2445 Fax: (***) 257-6310 (please look at our rules and privacy policy) |
