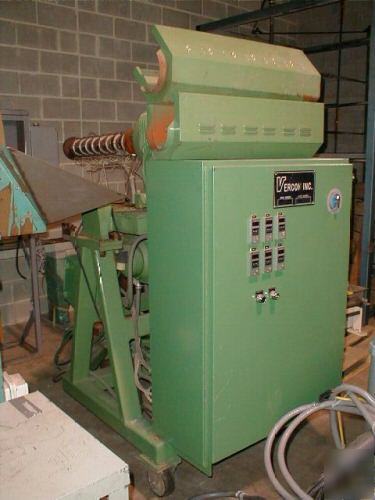

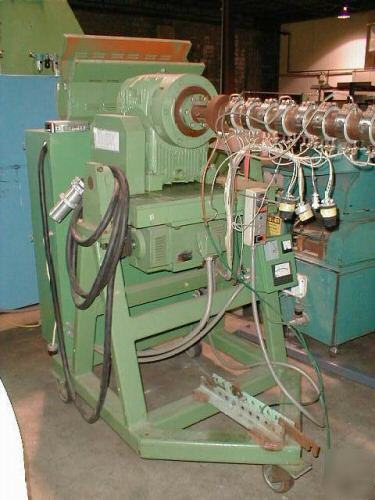

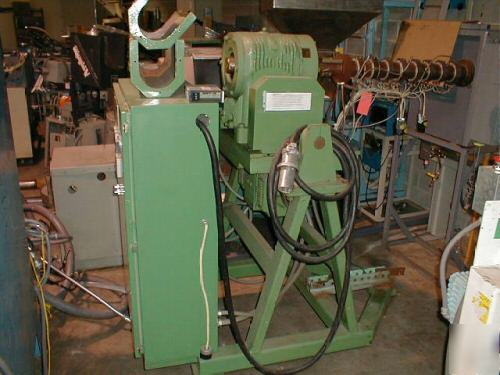

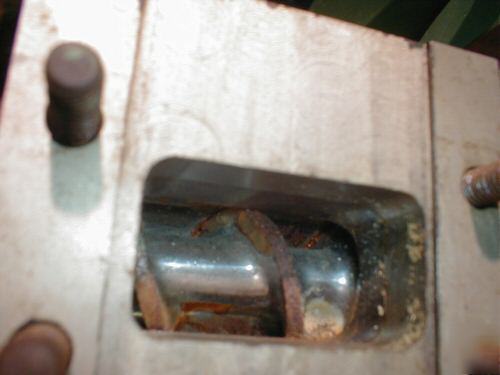

GLOBAL EQUIPMENT & MACHINERY SALES IS A WORLDWIDE SUPPLIER OF QUALITY USED MACHINERY FOR THE PULP & PAPER AND THE PAPER, FILM, & FOIL CONVERTING INDUSTRIES. Used 1.5", 24:1 Vercon Co-Extruder driven by a 10 HP DC motor drive system. (3) zone electrically heated non-vented barrel with discharge end having a circular bolt pattern flange. Extruder is caster mounted for mobility with an adjustable pivot assembly that allows operation from a horizontal 63" barrel centerline height to a vertically downward position. Extruder feed section is cored for cooling and has a rectangular on-center feed opening including a gravity feed hopper. Extruder control cabinet contains (6) RKC Series RE-48 1/8 DIN solid state temperature controllers consisting of (3) extruder & (3) die zones with the 10 HP DC-SCR drive controller mounted and wired inside. Control cabinet is unitized to extruder base and inter-wired to extruder for easy installation and electrical hook-up. New 1984 Extruder appears to be in very good condition. Electricals: 240V/3PH/60HZ Global Equipment & Machinery Sales is your source, whether you're in need of a complete plant or individual machine. Be sure to add me to your favorites list! (please look at our rules and privacy policy) |
