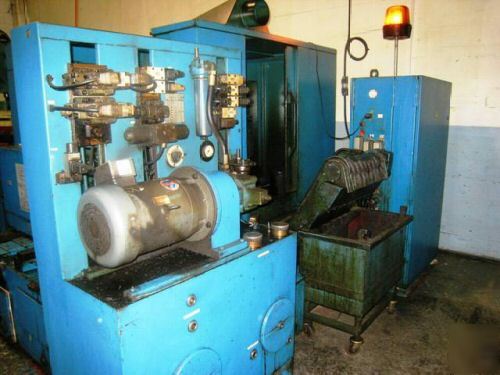

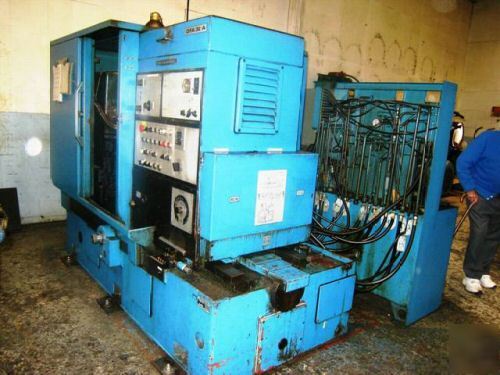

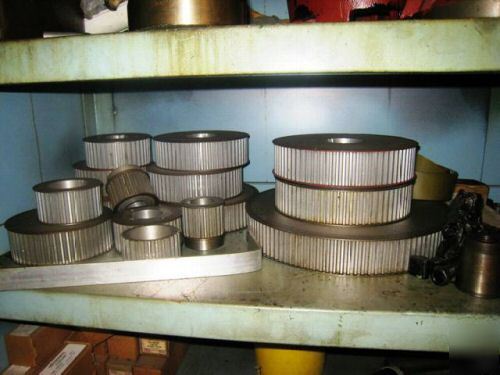

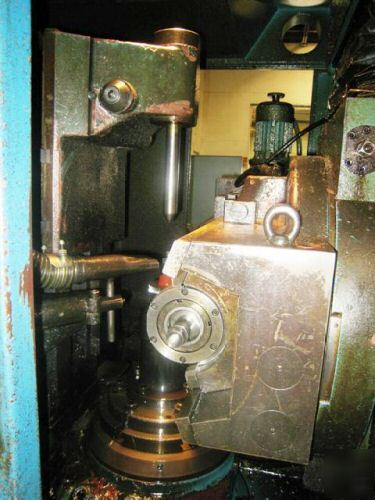

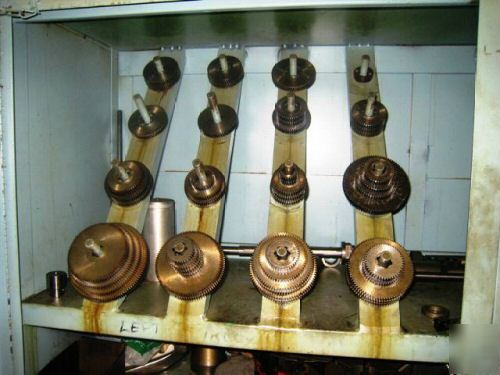

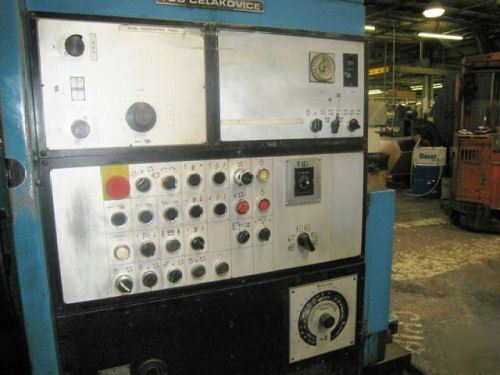

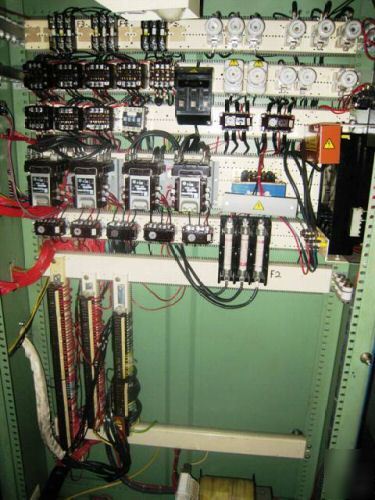

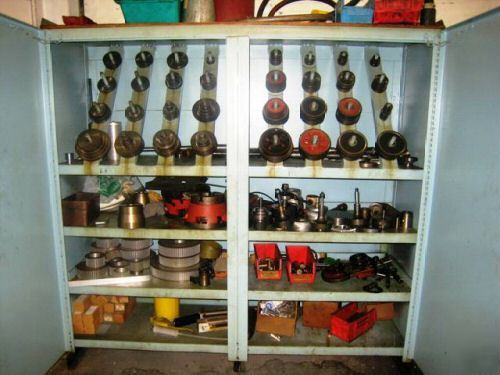

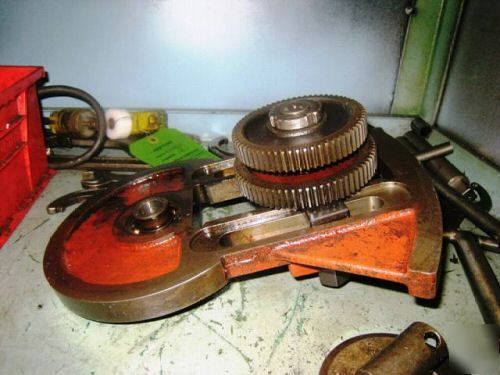

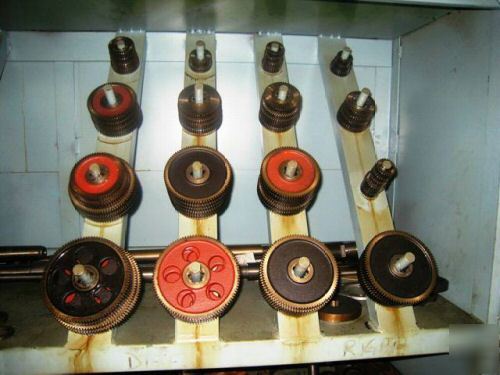

TOS MODEL OFA 32A AUTOMATIC CYCLING GEAR HOBBING MACHINE The OFA 32A Gear Hobber is designed to hob spur gears with straight or helical teeth, sprocket wheels, worm wheels in radial hobbing method, spline shafts and other types of profiled components in the gear generating method. The machine is suitable for the single piece or batch construction. Motor Driven With AC Motor and Controls, Motor Driven Hydraulic and Coolant Systems. Automatic Work Loading Attachment, Helical Gear Attachment, Tangential-Drive Head Which Will Allow The Machine To Produce Work Wheels In The Tangential Method. Hydraulic Clamping Cylinder. Gear Blank Clamping Attachment For The Hydraulic Clamping Cylinder. Large Quantity of Change Gears And Work Holding Fixtures. Magneticc Swarf Conveyor and Speed Pulleys. Max Gear Diameter 320mm (12.6") Max. Module To Be Hobbed 7mm (3.6 DP) Distance Hob Axis To Table Axis Max. Helical Angle Of Gear Teeth ±45° Max. Diameter Of Hob 150mm (5.9") Max. Length Of Hob 200mm (7.8") Hob Speeds In Steps (17) 71-450 RPM Diameter Of Work Table 300mm (11.8") Bore In Work Table 80mm (3.2") Approx Dimensions 2.5M L-R x 2.4M F-B( 99.2"LR x 94.1"FB) Approx Weight 6,200KG (14,000 Lbs) (please look at our rules and privacy policy) |
