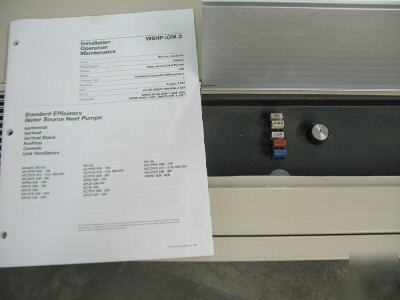

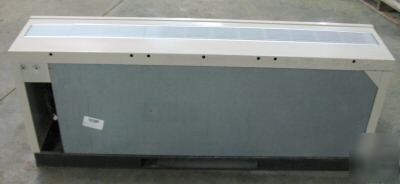

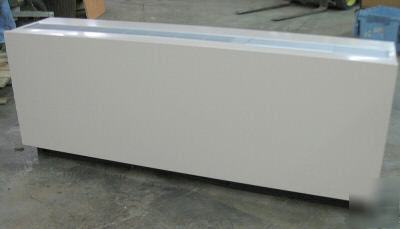

This is for one trane geothermal water source heat pump. Units are new in boxes and crates. Trane standard beige color. Single phase, 1-1/3 ton console model. Model #- WPCE01611C20R010000000101100 WC = Water Source Cooling Only SC = Water Source Cooling Only DIGITS 5, 6, & 7- NOMINAL SIZE (MBH) 1 = Unit Mounted Manual Changeover 2 = Unit Mounted Auto Changeover 3 = Low Voltage (24 VAC) for Wall Stat B = Slope Top and Extended Cabinet Options DIGIT 12 - ELECTRIC HEAT COIL KW DIGIT 14 - CABINET FEATURES/OPTIONS 3 = Extended Slope Top Cabinet DIGIT 15 - SUBBASE FEATURES/DAMPER CONFIGURATION 1 = Standard Subbase, No Outside Air Damper 2 = Manual 25% Outdoor Air Damper 3 = Motorized 25% Outdoor Air Damper S = Special Subbase Features/Damper 0 = Standard Refrigerant Option 0 = No Night Override Timer Switch 6 = Night Override Timer Switch DIGIT 19 - RELAY; RANDOM START A Night Setback Relay w/Staggered Start B Both Random Start and Night Setback Relays DIGIT 20 - BOXES; 30" CORD, RECEPTACLE T 30" Cord, Receptacle 208-230/60/1 DIGIT 21 - MORNING WARM-UP THERMOSTAT 0 No Morning Warm-Up Thermostat W = Morning Warm-Up Thermostat 0 = No Temperature Sensor Selected 1 = Entering Water Temp Sensor 4 = Entering Water and Return Air Temp Sensors 5 = Entering Water and Mixed Air Temp Sensors 0 = No Freezestat Required (Cooling Only) 1 = Standard 35 Degree Freezestat 2 = Low Temp 20 Degree Freezestat 2= 90/10 Cupronickel Water Coil DIGIT 27 - ACCESS; DOOR OPTION 8 = Key Lock for Top Access Door 9 = Tamperproof Lock for Top Access • "S" designation in any digit of the model number denotes "SPECIAL " Please see link for full download: http:// /webcache/un/water%20source%20heat%20pumps%20(wshp)/service/wshp-iom-2_08011997.pdf (please look at our rules and privacy policy) |
