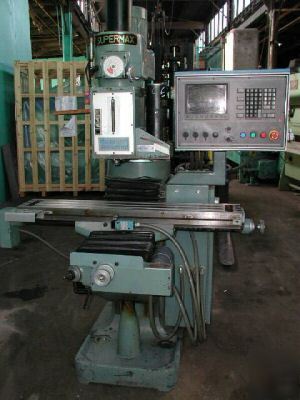

SUPERMAX 3-AXIS CNC MILLING MACHINE with Dynapath Delta A-5OME Control Table Working Surface . . . . 9†x 49†Maximum Load Capacity . . . 550 lbs. Travels: Longitudinal X-Axis . . 28†Table to Spindle Nose . . . . 0 – 18 3/8†Table Center to Column . 5 – 17†Quill Diameter . . . . . 3 3/8†Spindle Nose . . . . . NST #30 Spindle Speed (infinitely variable) . 60 – 4200 RPM Spindle Motor . . . . . 2 HP AC Power – Electrical . . . . 60 Hz, 3 Phase, 208/230V Weight (without controls) . . . 2300 lbs. Floor Area . . . . . 65†x 80†Ball Screw Drive Pulley Diameter: X-Axis 2.5†Chrome Plated Ways (knee and saddle) Way Chip Covers (bellows type) Ground Ball Lead screws (X, Y & Z) Automatic Lubrication on Screws and Ways Ground Table w/Coolant Key Ways THIS ITEM MAY ALSO BE PURCHASED FROM OUR WEBSITE AT NORMAN MACHINE TOOL. BE SURE TO VISIT US. Feel free to E-MAIL ME or call 1-(***)-394-4399 about any questions, or for information on OUR OTHER PRODUCTS Norman Machine Tool Ltd. Supplying Quality Machinery and Tooling for Over 55 Years!! (please look at our rules and privacy policy) |
