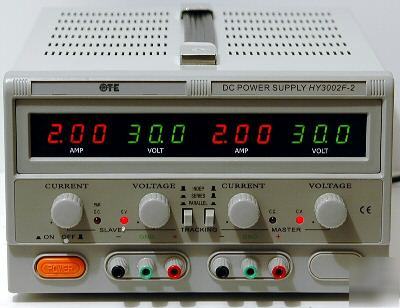

MASTECH (OTE) HY3002F-2 HQ TRIPLE DC POWER SUPPLY BRIGHT RED AND GREEN LED METERS DUAL VARIABLE VOLTAGE: 0 TO 30 Volts / CURRENT: 0 TO 2 Amps his newest MASTECH DUAL output grounded DC power supply is of very high quality construction by MASTECH. Excellent for lab use with the two variable 0-30 volt 0-2 amp outputs. Other uses include science projects or any other use where stable voltage up to 30 volts is required. For the two variable outputs the voltage is variable from 0 to 30 volts and the current is also variable from 0 to 2 amps. The 2 sets of dual digital color LED meters display the actual voltage and current within 2 percent. The unit also has a switch to choose among INDEPENDENT, SERIES or PARALLEL operation which can provide either dual 0-30V @ 0-2A or one 0-60V @ 0-2A or one 0-30V @ 0-4A. The complete MASTECH HY3002F-2 specifications: * Output Voltage: 2 @ 0 - 30 Volts * Output Current: 2 @ 0 - 2 Amps * Input Voltage: 110V, 60Hz. * Constant voltage/ Constant Current * Voltage and Current adjustment * Power effect: CV<0.01%+2mV, CC<0.2% + 2mA * Overload effect: CV<0.01% +3mV, CC<0.2% +3mA * Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s * Protection: Current limited & Short circuit protection. * Operating Temperature : 0 - 102 F ( 0 -40 C), Relative Humidity: <90% * LED Accuracy is within + or - 2% (please look at our rules and privacy policy) |
