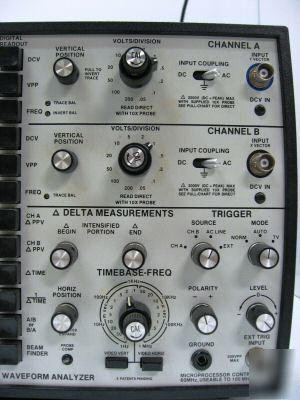

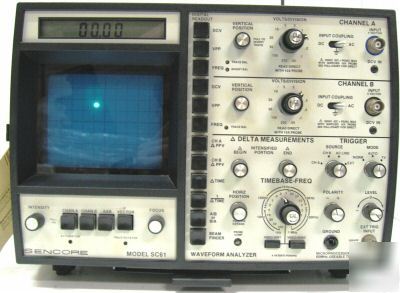

Sencore SC61 Waveform Analyzer Frequency Response: DC to 60MHz. (Display is usable to 100MHz). Maximum measuring voltage: 2000V Sensitivity: 50mV/Div to 200V/Div Display Modes: A, Inverted A, B, A&B, A+B, B-A, X-Y Timebase: 19 calibrated sweep rates 100ms/Div to 0.1us/Div & X10 Magnifier DC Volts: 0-20, 20-2000 ranges, 3-1/2 digit P-P Volts: 0-8, 8-80, 80-800, 800-2000 ranges Freq. Response: 30Hz to 60MHz Frequency: 7 automatically selected from 1.00-9.99Hz to 10.000-99.9999MHz Delta Readout Specs (intensified trace can be positioned to any portion of the waveform with Start and End controls): P-P Volts, Delta time, 1/Delta time. (please look at our rules and privacy policy) |
