Red led set of 50 super bright 5MM 18000MCD+ f/r


Submitter: Bettye_Goff@modularparts.com (Bettye Goff)
What Bettye Goff is selling: Red led set of 50 super bright 5MM 18000MCD+ f/r
Besthongkong - your source of LEDs
Welcome! You are looking at the item

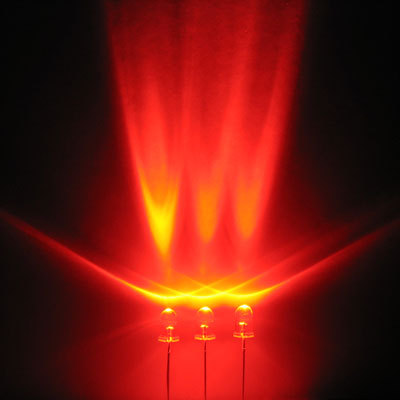

Red LED Set of 50 Super Bright 5mm 18000mcd+ NR F/R
Recommended Resistors (1/4 Watts) For Blue, Green, UV, White LEDs
Recommended Resistors (1/4 Watts) For Red, Yellow, Orange, Amber LEDs
Red LED Set of 50 Super Bright 5mm 18000mcd+ NR F/R
* Ultra High Intensity Rating (18000mcd+)
Typical Electrical & Optical Characteristics
DC forward voltage : VF (IF =20mA)
DC reverse current : IR (VR =5V)
Intensity luminous : Iv (IF =20mA)
* All dimensions are in millimeters.
* Clean only in isopropanol, ethanol, Freon TF (or equivalent).
* If forming is required, it must be done before soldering. Form pin leads by securing under 5mm from body and bedding with radio pliers or the equivalent to avoid pressure on resin. When the LED is mounted into a P.C. board, pitch spacing should be aligned to prevent any stress to the resin. Any unsuitable stress applied to resin may break bonding wire in LED, which will cause failure.
* Protruded resin under flange is 1.5mm Max.
* Specifications are subject to change without notice.
* We charge No discounted for people living in the same city or same building. No Exceptions
* Defective products must be returned within 30 days from the date you placed your order.
* It may take up to 30 business days to process your return after we receive your product.
Size: 1.8mm, 3mm, 2mm x 5mm, 5mm, 8mm, 10mm
Package: Tower, Standard Round, Flat Top, Rectangular, Square, Oval, Flangeless, with Stand-off
Color: UV, Blue, Cyan/Aqua, Blue-Green/Traffic Green, Pure Green, Soft-Green, Yellow Green, Yellow, Yellow-Orange, Amber / Orange, Orange Red, Red, and Infrared
Read the following links for a better understanding.
* LED Part Number Coding System
* LED Series Description Table
* Packing Dimension and Spatial Distribution
* • LED Part Number Coding System
* • LED Series Description Table
* • Packing Dimension and Spatial Distribution
