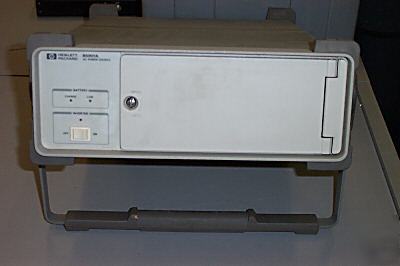

IN GOOD WORKING CONDITION; COMES WITH MANUAL AND STANDARD POWER CORD. ALSO COMES WITH A 30 DAY WARRANTY Portable Power that Meets Your Needs • Internal battery or external 12 Vdc source • Up to 2 hour operation of 8590A spectrum Remote power where you need it Take the guesswork out of field measurements! The 85901A portable AC power source works with your test equipment to provide the power you need, where you need it. The power source is small, with a briefcase handle that makes it easy to carry and it fits into tight spots, even under an airline seat. You can use the built-in battery of the power source or connect it to an external 12 Vdc source for even longer operation. Just plug your test equipment into the 85901A AC power source and turn the instrument on. You'll get more than an hour of operation at 100 Watts continuous load. When the battery charge gets low, the power source automatically shuts off. This prevents any deep discharge degrada-tion. You can recharge the battery in six hours or less from the point of full discharge. The 85901A AC power source protects itself and your test equipment. It has over-voltage, short-circuit, and over-load protection on the inverter output. The power source also has over-voltage protec-tion on the inverter input and over-charge and over-discharge protection for No compromises were made in designing the 85901A portable AC power source. Its gel-cell battery, control circuitry, and charger all fit into a briefcase-sized package similar to the 8590A portable spectrum analyzer. The internal battery of the power source, in its own rugged box, is accessible through a front-panel door and can be replaced by removing just two screws. So now you can make measurements anywhere. An 85901A will provide power for your portable 8590A/8592A/8562A spectrum analyzers; for your oscilloscopes, voltmeters, and data acquisition test sets; or for whatever needs power. Make your tests where they are needed – when The following specifications apply to the 85901A AC power source. Specifications describe the instrument's warranted performance over the 0 °C - 55 °C temperature range, except where noted. All specifications apply after the instrument's temperature has stabilized (typically 30 min. from turn-on). For complete specifications and Voltage 90 to 250 Vac auto selected Power consumption 122 VA maximum Voltage 135 or 270 peak ± 5% rectangular Frequency 60 Hz ±0.1%, crystal REF Maximum power 200 watts continuous 1. Turning the charger on automatically turns the inverter off. Typical operation times versus load – 85901A 210,200,190,180,170,160,150,140,130,120,110,100,90,80,70,60,50,40,30,20 Storage temperature Recharge interval Capacity 17 AMP-Hour (nominal) Dimensions 337(w) x 125(h) x461(d) mm Weight (with battery) 14.2 kg (31.3 Ibs) Weight (w/o battery) 8.0 kg (17.7 Ibs) (Includes 17 Amp-hour battery and one power cord adapter for use with Agilent Instruments, the (The power cord adapter is used for connecting Agilent instruments to one of two female CEE22-V output connectors on the 85901A AC power source.) General Purpose Power Cord Adapters (These allow country specific line cords to be plugged into the 85901A AC power source.) 1. Shelf life of battery decreases with either extended operation or 2. Battery cyclic life (charge-discharge) is nominally rated at more than 3. Battery is a Matsushita Electric LCR12V17P lead acid gel-cell. Battery is also available from Agilent Technologies as (please look at our rules and privacy policy) |
