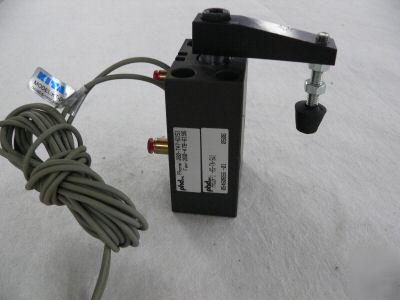

Model number break down: Series PA, Standard Block Style, 25 mm Bore, Right hand rotation, Imperial, Single steel arm, Neoprene Tipped, 2 Reed switches installed 26.5 mm stroke, 46 lbs holding force Reed switches are Kita model KT-06R, DC/AC 5-120V 50 mA 6 W http://litstore.phdinc.com/pdf.asp?filename=PA.pdf WORKING PRESSURE 40 psi min. - 100 psi max. PISTON ROD Chrome Plated Steel SEALS Urethane Wiper and Rod Seal Nitrile Pistons and Static Seals LUBRICATION Permanent for Non-Lube Air (please look at our rules and privacy policy) |
