22Tn NEW PRESS BRAKE, Birmingham HB-2280 24"
22Tn NEW PRESS BRAKE, Birmingham HB-2280 24"
New "Birmingham" Hydraulic Press Brake

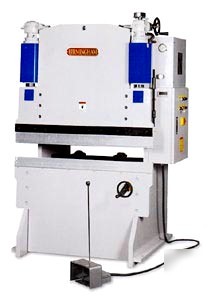

(Note: photo is of the 33 Ton x 50" model)
Distance Between Uprights: 65"
Table Width: 1-1/2" Bottom Die Holder Width
Distance Between Table/Ram: 10"
Power Back Gauge (in): 24 (opt)
Back Gauge Motor (hp): 1/4 (opt)
The Frame is made of hight tension strength stress relieved steel
plate and rigidly bolted/welded to manufacture strong/u-transform
To ensure the movement of the guideblock more smoothly and
The compulsory synchronization of the mechanical structure to
ensure the top die and bottom die are fully parallel at any position
A large tank allows the ail to run smoothly and efficiently. The high-
efficiency, low-noise pump improves the quality of the working
Depth positioning by accurate mechanical stops inside the cylinder
to ensure every bend is to the same exact angle. Adjustable strokes
Removable foot control pedal with safety protection. The upper die
beam is raised back to the top position immediately upon the
operator removing his foot from the pedal.
High-efficiency hydraulic circulation system, quality solenoids and
two powerful cylinders provide maximum and stable output to
execute excellent performance. Ram downward by two-step speed,
fast-speed approaching and slow-speed press bending to shorten
the cycle time. Easy setting work pressure by stepless regulator
with overload protection device to provide proper pressure.
Two micro-fine adjusting bending angles, this device provides two
directional adjustments, increase or decrease bending angle(s), to
achieve a uniform angle on both ends of the bent workpeice.
One-piece upper forming punch. One-piece 4-way bottom lower die.
Multi-size V-slot design to meet most bending applications.
Precision ballscrew type back gauge with readout disply and micro
Hydraulic bottom die angle compensation.
Jog, single and auto bending modes.
24" front operated manual ballscrew back gauge with digital
counter and micro adjustor (22/33/38/50 ton models).
One top die and one 4-way bottom die
Control panel with all switch low voltage wired.
Removable foot pedal with safety protection housing.
Tool box with maintenance tools and leveling pads.
Optional Equipment (call for pricing):
24" Power ballscrew back gauge with digital counter display and
Powered bending angle setting device
Hydraulic bottom-die angle compensation
Safety sensor protection system.
Power grease injecting system.
2 Axis CNC back gauge with German ELGO #P8822
Machine Location: HARRISON, NJ
