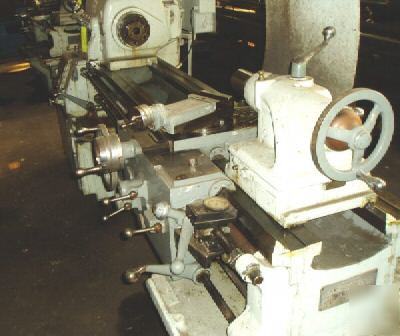

16/18.5" x 54" MONARCH ENGINE LATHE New 1954, Serial No 39827, Model 61, Cat Size 16", Full Length Removeable Coolant-Chip Pan Hole Thru Spindle...................... 1.56" Swing Over Bed Ways, Rated............. 16" Swing Over Bed Ways, Actual............ 18.5" Swing Over Cross-Slide................. 10.5" Distance Between Centers............... 54" Top-Slide Cross-Feed Travel............ 3.75" Tailstock, Spindle Diameter............ 3.375" Tailstock, Spindle Travel.............. 7" (16) Spindle Speeds, Range............. 17 to 700 RPM (66) Carriage Longitudinal Feeds....... .0014 to .0841 IPR (66) Thread Changes, Range............. 2 to 120 TPI Motor Horsepower....................... 7.5 HP Floor Space Required, L x D............ 10'2" x 3'8" Weight, Approximately.................. 5230 LBS PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00 All machines/equipment subject to prior sale. (please look at our rules and privacy policy) |
