Dsp research tiger C5410/pc voice development system


Submitter: Kristin_Justice@modularparts.com (Kristin Justice)
What Kristin Justice is selling: Dsp research tiger C5410/pc voice development system
Includes any remaining manufacturer warranty.
We also provide a 14 day warranty.

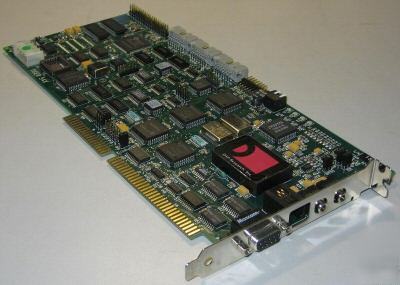

The TIGER 5410/PC plug-in board features a 'C5410 processor and provides up to 100 MIPS of performance. A flexible PC-host interface includes a debug port, making the TIGER 5410/PC an ideal PC development board. The board supports the 'C5410 host port interface (HPI), offering shared access of the 'C5410 HPI8 RAM, and features EPROM & UART, making it ideal for stand-alone fax/modem applications.
* (1) DSP Research Tiger C5410/PC
* TMS320LVC5410 running at 100 MIPS
* Stereo 16-bit 50 kHz CD-quality analog I/O, plus telephone interface
* Supports 'C5410 8-Bit Enhanced Parallel Host-Port Interface (HPI8); 64K words on-chip RAM (double the RAM of the 'C549); and 16K words on-chip ROM
* On-board UART for stand-alone fax/modem applications
* 16-bit ISA Bus Interface with Interrupt Support
* Serial Ports: Three Multichannel Buffered Serial Ports (McBSPs)
* Input and Output: On-board stereo A/D-D/A converter, running at up to 50 kHz with 16-bit resolution. Microphone and line-level inputs, line output, with standard stereo mini-phone jack. On-board analog telephone interface, FCC part 68 approved, with standard RJ-11 jack. Two 8-bit D/A converters for modem applications
* Stand-alone Operation: On-board Power Connector for stand-alone operation
* Debug/Emulation: On-board JTAG emulator hardware. In stand-alone configuration, a 14-pin JTAG connector is available for connection to a TIGER Emulator or an XDS-510
