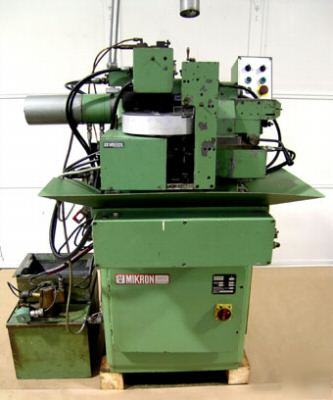

Liberty Machinery Company You are looking at a No. A21/2, MIKRON Bowl Feed, 1.6" Max Diameter, Stack/Load Attachment Horizontal Gear Hobber Serial No. 956-71-80-005/501Condition - UsedNew - 1980 SPECIFICATIONS: Maximum Diameter that can be Hobbed @ 24 mm (.95") 40 mm (1.6") Travel of Hob - Maximum 40 mm (1.6") Length that can be Clamped - Maximum 75 mm (2.96") Swivelling Range of Hob Spindle - Maximum +/- 6 Degrees Axial Displacement of Hob Spindle - Maximum 10 mm (0.4") Number of Teeth with Normal Indexing Gear Train 5 - 399 Number of Teeth with Special Indexing Gear Train 3 -240 Number of Teeth with Special Indexing Gear Train 25 - 3200 Horizontal/Vertical Feeds Inf. Variable between 0-15mm/sec (0.-59") Hob Speed in Geometric Progression between 400 - 4800 RPM Approximate Weight 650 kg (1,433 Lbs.) Approximate Dimensions 840 x 1025 x 1350 mm Main Motor (m 3) 1,1 kW (3600 RPM) Hydraulic System Pump (m 1) 0,18 kW (1800 RPM) Coolant Pump (m 2) as Required 0,06 kW (3600 RPM) Mikron Type 90 Fully Automatic Stacking & Loading Attachment Deburring Attachment SPECIFICATIONS FOR STACKING & LOADING ATTACHMENT: Capacity of the Pot for Blanks 2, 5 - 10 mm Diameter 0,25 litre Capacity of the Pot for Blanks 10 - 20 mm Diameter 0,8 litre Blank Diameter - Maximum 20 mm Blank Thickness - Maximum 1/2 Workpiece Diameter Length of Stack - Maximum 20 mm Number of Blanks per Stack Depends on Stack Length Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting (please look at our rules and privacy policy) |
